Ultimate 12

  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture
  • Click for larger picture

Specification

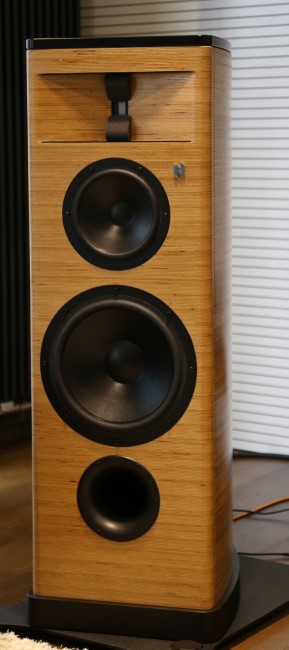

Type Time alignment, floor-stand, three way, bass reflex
Impedance 8 ohm

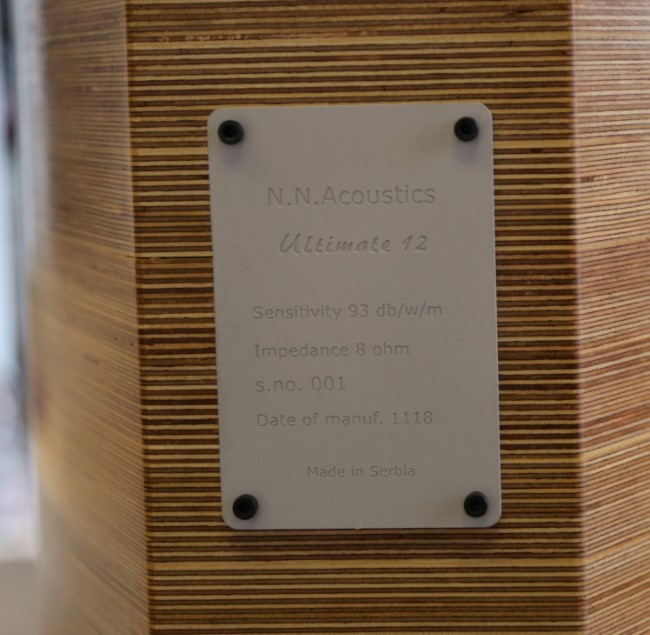

Sensitivity 93 db / w / m
Dispersion
  • H : 120 deg / - 6 db / 20 Khz
  • V : 40 deg / - 6 db / 20 Khz
Ribbon center 108 cm

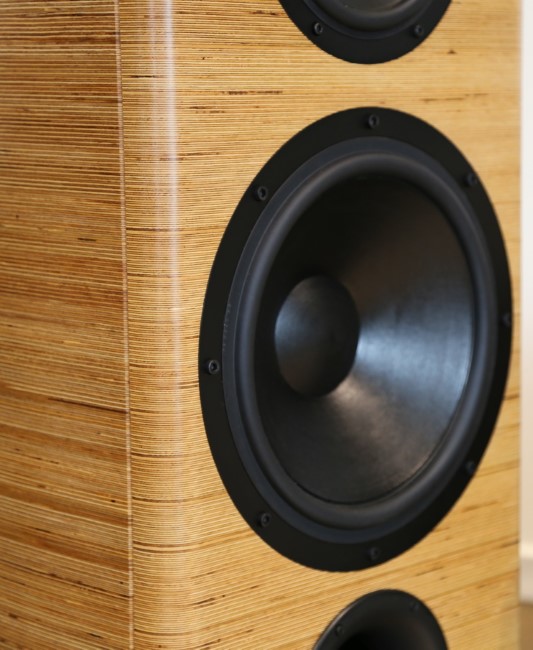

LF unit Audio technology  12 inch
MF unit Audio technology  8 inch

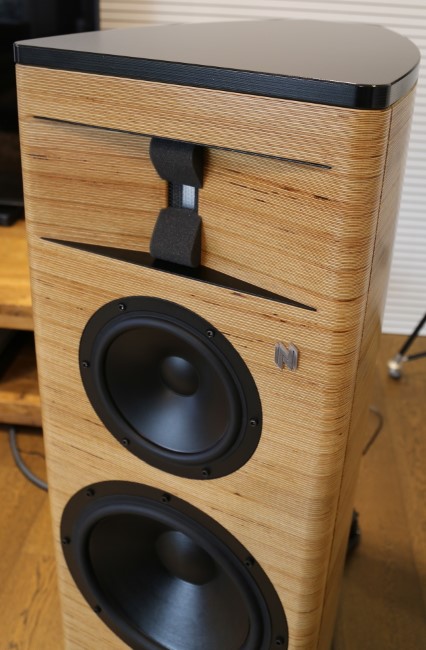

HF unit Raal true ribbon (custom)
Cross-over In separate chamber 0,35 khz, 2,5 Khz,
hard wiring , lead free soldering hand wound air - core coils, core coils,
tolerances <1%, Polypropylene capacitors CLARITY CAP high power resistor group
Internal wiring VDH

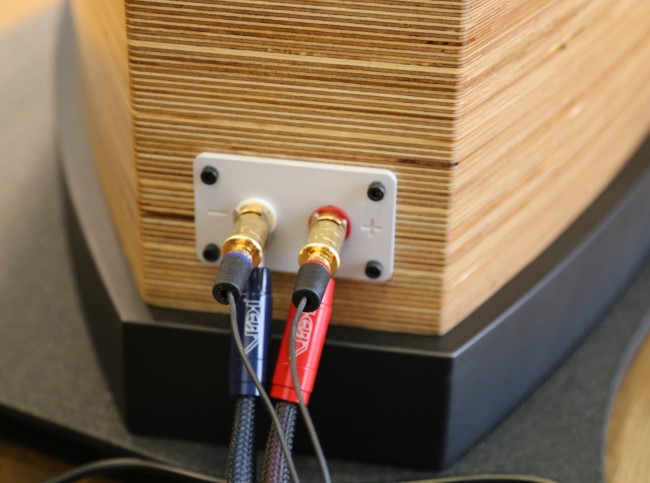

Binding posts WBT  signature, single pair
Dimensions (H*W*D) H - 123cm, W- 40cm, D - 57cm
Weight 120 kg. Each
Construction

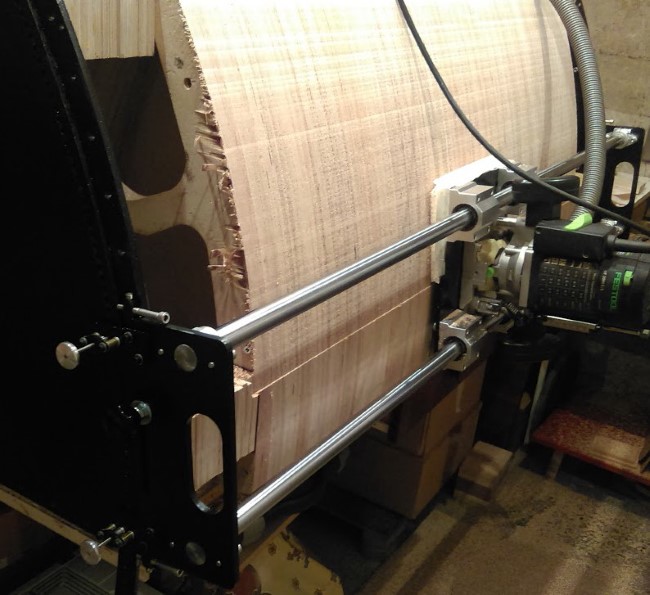

Cabinet - birch plywood
Finish - oils and hard wax
